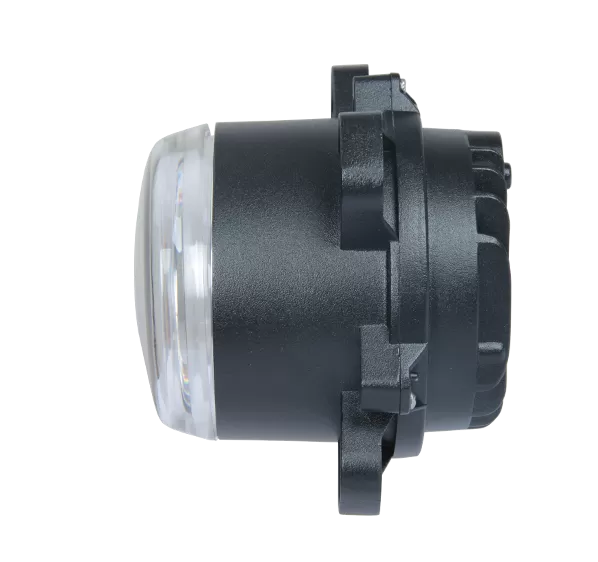

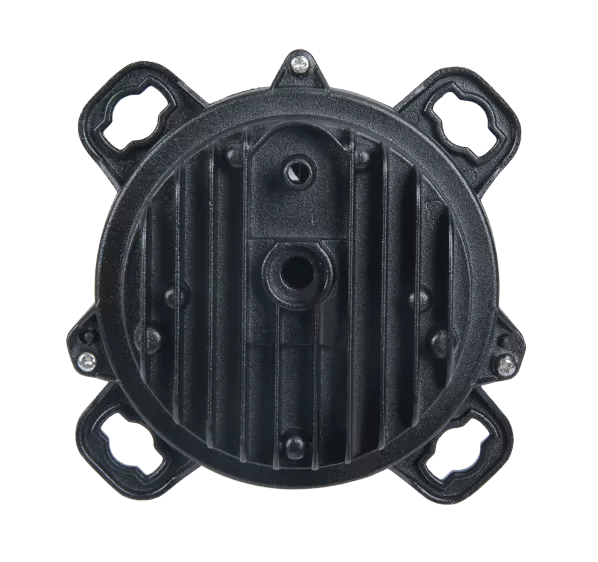

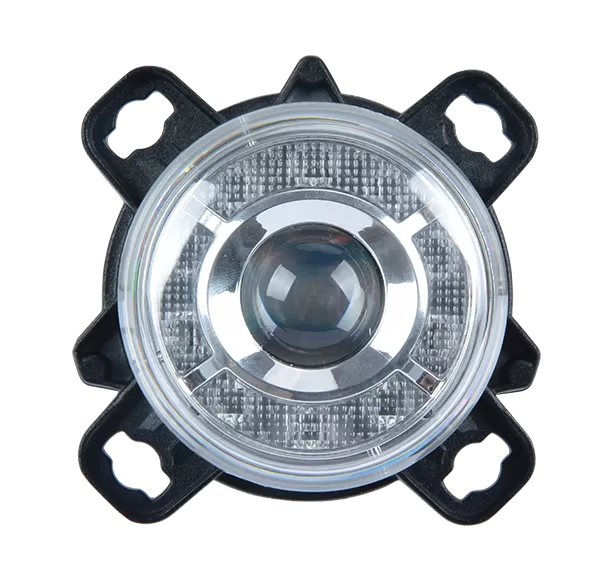

| Model: | E1339 | |
| Functions, Homologation | ||
| Functions: | LED Headlight Low Beam, DRL | |
| Homologations: | ECE R112, R10 | |
| Optical & Electric Features | ||
| LED Type: | 1 pcs 15W OEM Vehicle LED | |
| Emitting Color: | White | |
| Color Temp: | Low Beam: 6000K | |
| Raw Power: | Low Beam:15W | |
| Effective Power: | Low Beam: 14W | |
| Current Draw@12V | Low Beam: 1.17A | |
| Illumination: | 1 Lux@130+M | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 5 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | Open cable | |
| Mechanical Features | ||
| Size: | 118 X 118 X 109mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Mount: | 4 tabs | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
