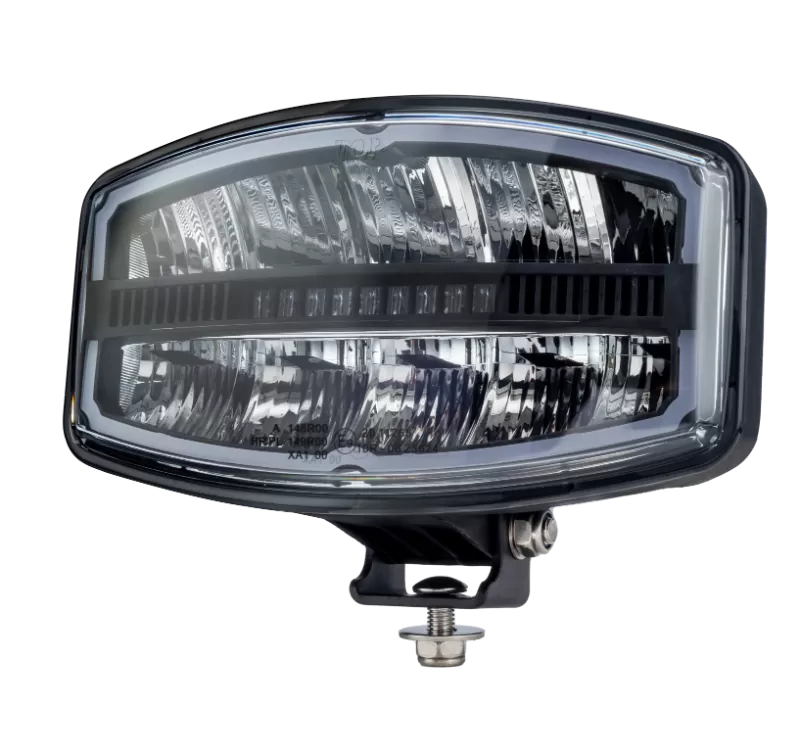

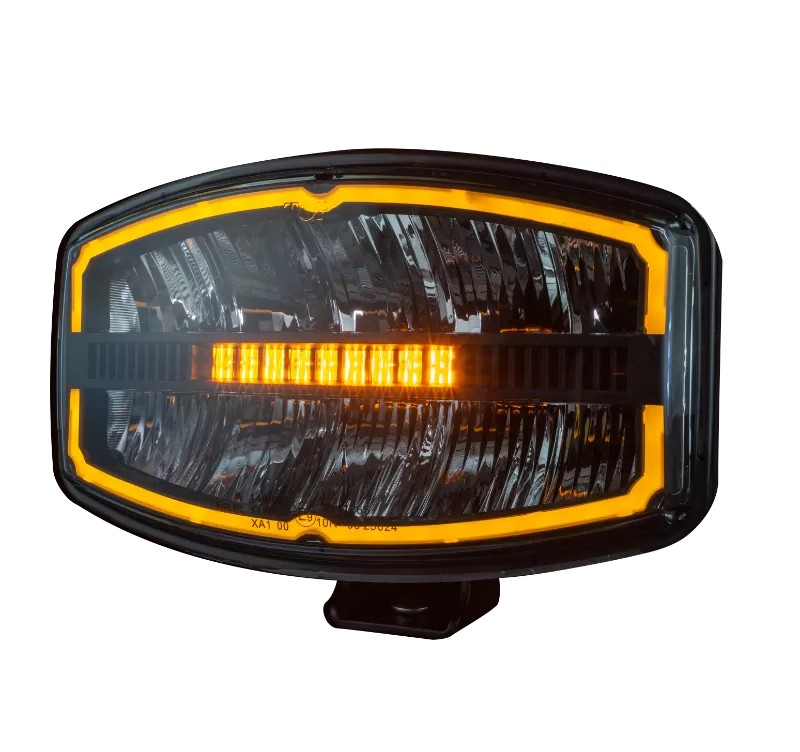

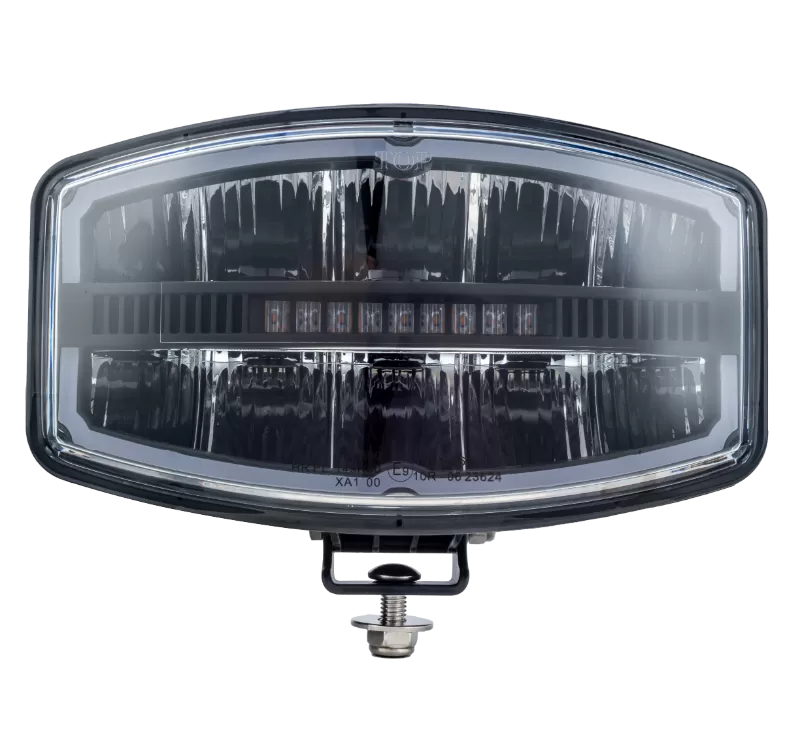

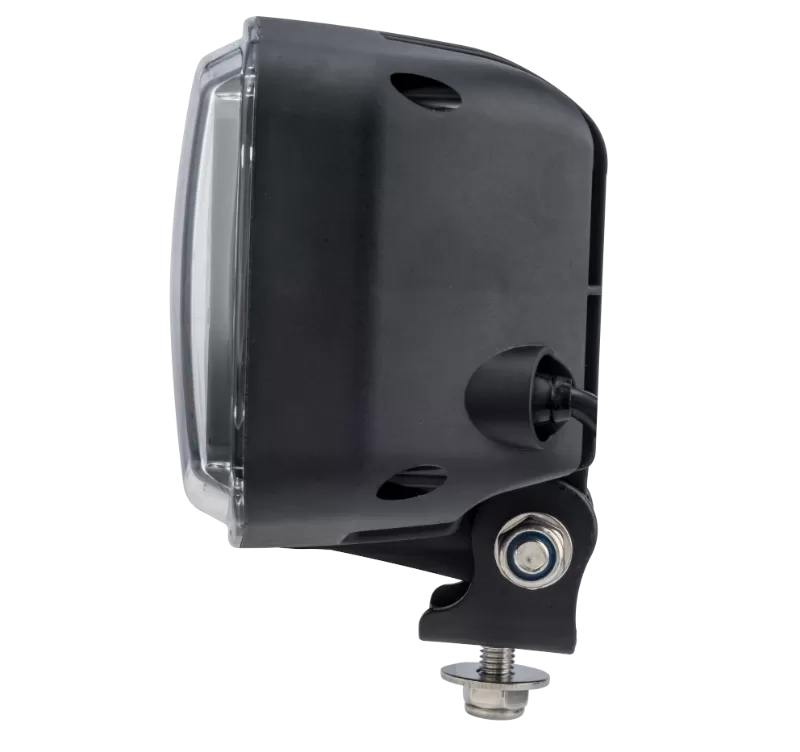

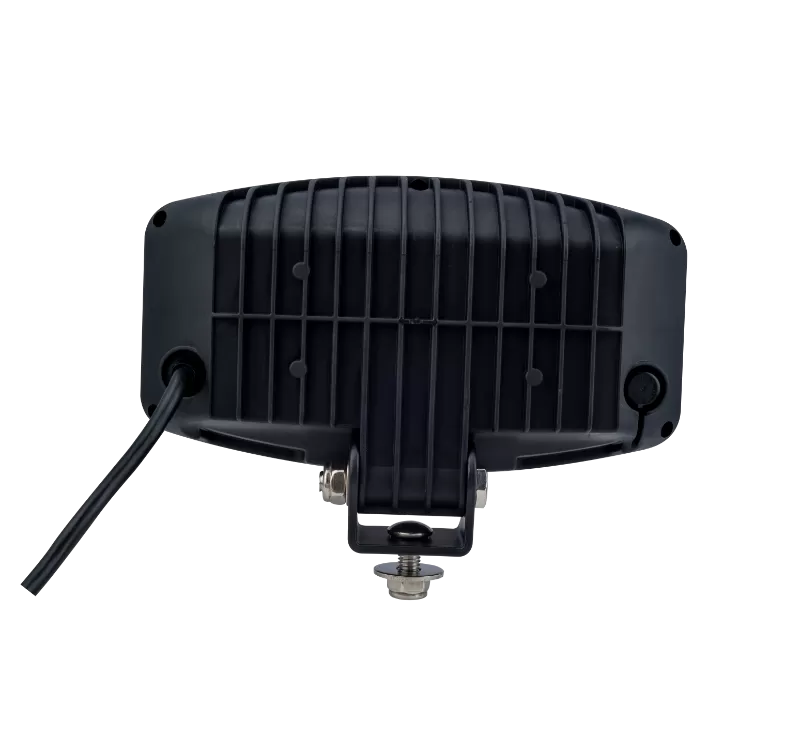

E2139-9X6” Combo Driving Light Strobe integrated
Model: E2139AS-1 (Gen. IV)
Functions, Homologation
Functions: High Beam, Position, Strobe
Homologation: ECE R149 ref20, R148, R65, R10
Model: E2139AS-1 (Gen. IV)
Functions, Homologation
Functions: High Beam, Position, Strobe
Homologation: ECE R149 ref20, R148, R65, R10
| Feature | Details |
| LED Type: | 12X 5W LED(s) High Beam 40X0.1W LED(s)(A) Position 40X0.1W LED(s)(W) Position 9X2W LED(s) Strobe |
| Color Temp: | 5700K~6500K (High beam) |
| Raw power: | High Beam: 60W; Position: 4W(A)/4W(W) Strobe: 18W |
| Raw lumen: | High Beam: 6000LM |
| Energy Consumption: | High Beam: 33W; Position: 3W(A)/3W(W) Strobe: 15W |
| Current Draw @ 24V: | High Beam: 1.38A; Position: 0.16A Strobe: 0.63A |

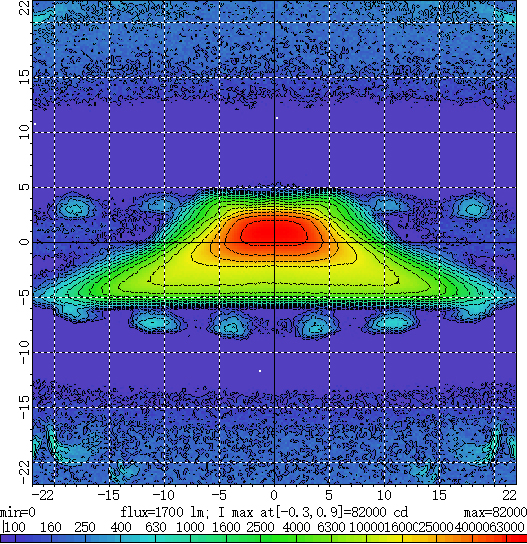

| Effective lumen: | 1700LM (Ref.20) |
| EMC Grade: | CISPR 25 Class 5 |
| Operating Voltage: | 10V~30V |
| Connector: | 4pin cable |
| Size: | 244X138.4X110mm |
| Housing Material: | Graphene |
| Lens Material: | Anti-UV PC |
| Lens Processing: | Surface Hardened |
| PC Brand: | COVESTRO 2407 |
| IP Rate: | IP66, IP6K9K |

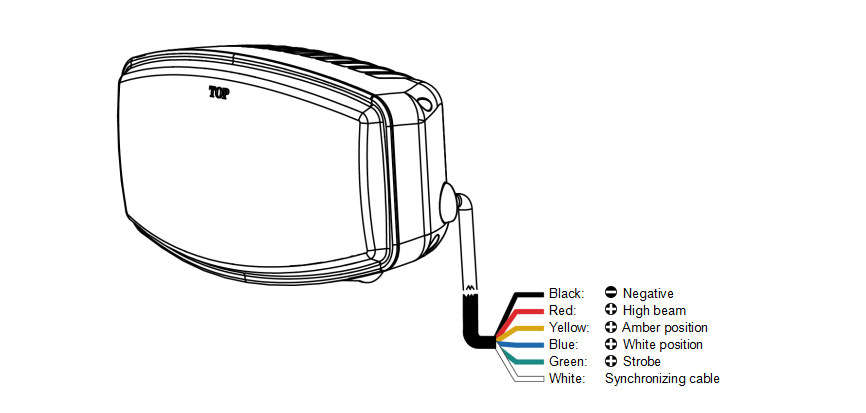

| Connector: | 5 pin cable (strobe synchronized) |
| Work Temp: | -40~+50℃ |
| Life Time: | >30,000H |
Why Gen.IV E2139AS-1 ?
I. Lossless installation, mounting size identical with OE parts.
II. Synchronized strobe light available, max 6 lights.;
III. OEM automotive grade LEDs.
IV. Over 10,000 hours 24/7 non-stop operation, truck friendly.
V. High level EMC, up to CISPR 25 Class 5.
VI. Zero interference against radio,mobile,nor reversing camera signals
VII.Legally on-road,fully E-marked for driving beam, position, as well as strobe.
Functions: High Beam,
Position
Homologation: ECE R112, R7, R10
LED Type: High Beam: 8 pcs 15W LEDs + 2 pcs 10W LEDs
Position: 32pcs 0.5W LEDs
Learn More
Functions, Homologation
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 36pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 13,777LM (pair)
Learn More
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 51pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 20,582LM (pair)
Learn More
