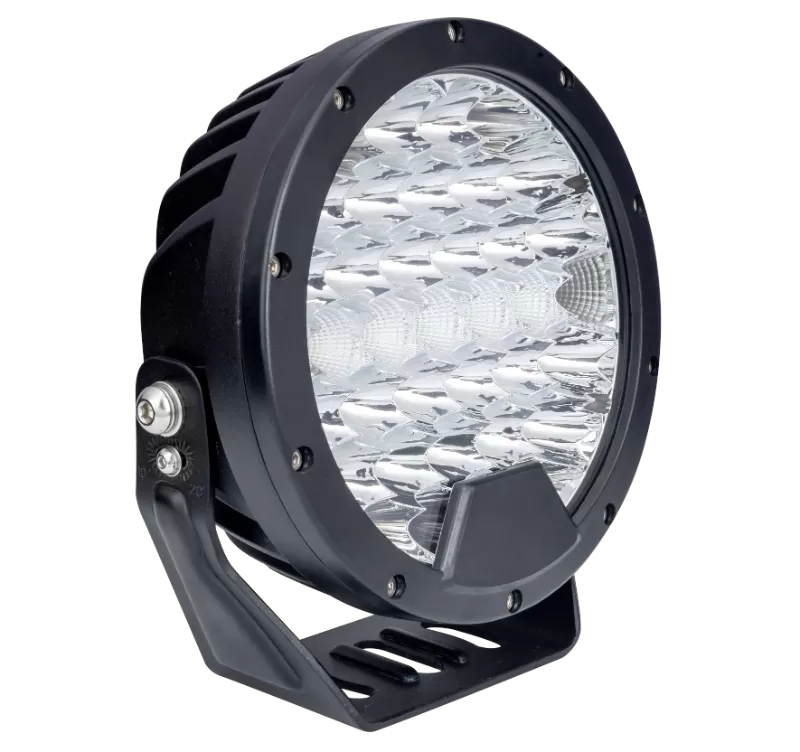

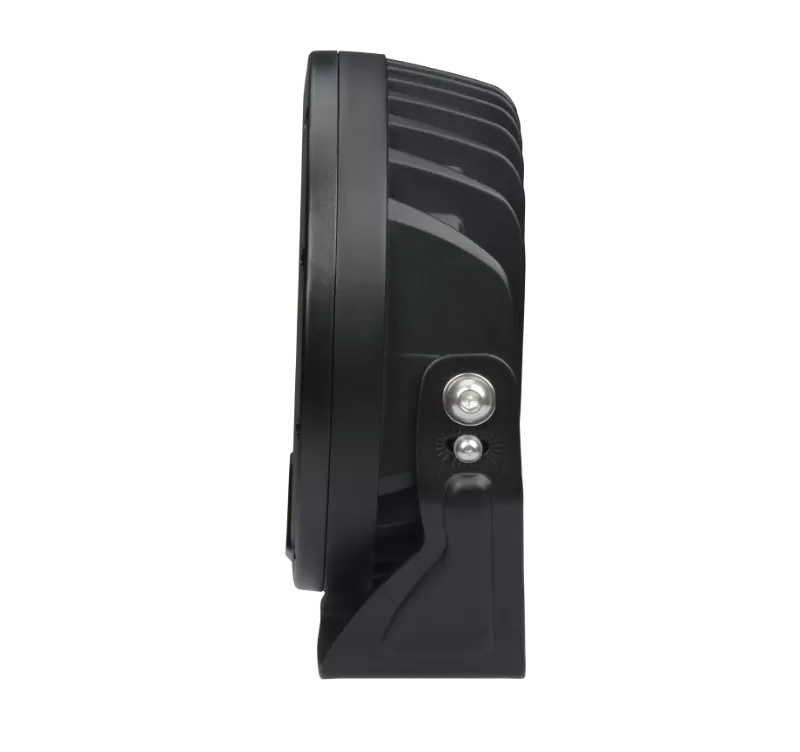

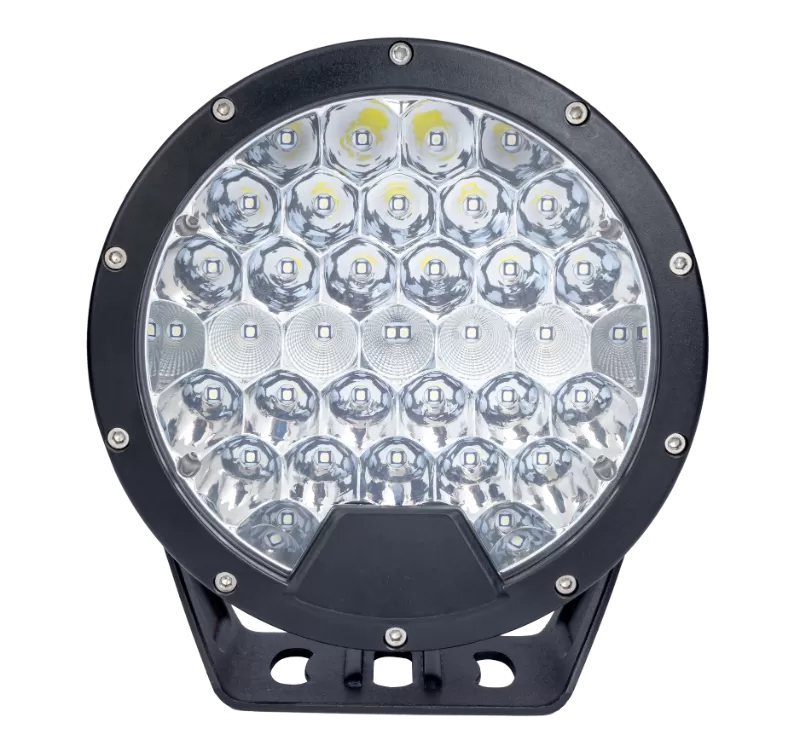

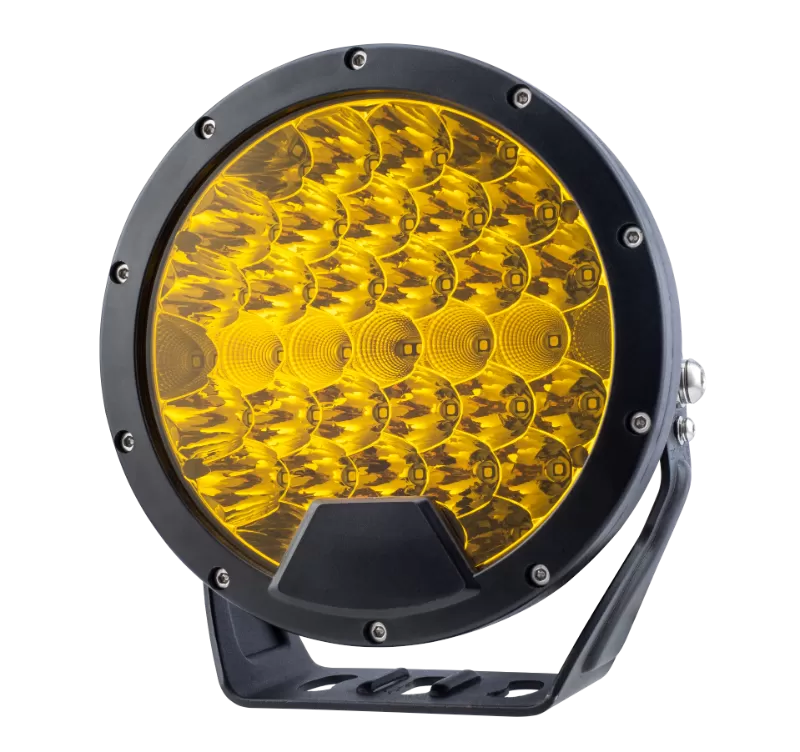

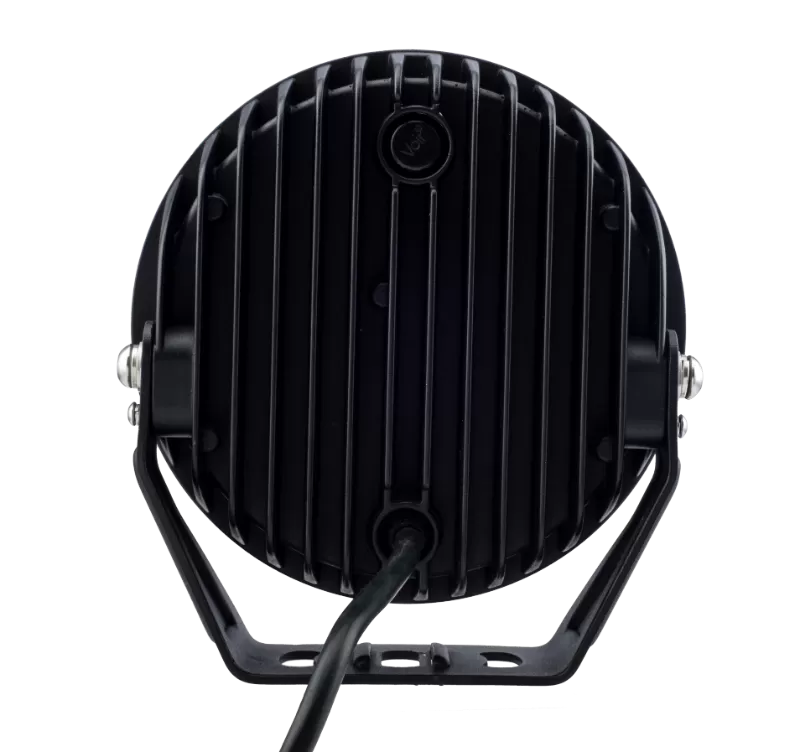

E2246-7” Round Auxiliary Combo Driving Light
Functions, Homologation
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 36pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 13,777LM (pair)
Functions, Homologation
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 36pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 13,777LM (pair)
| Functions, Homologation | |
|---|---|
| Beam Pattern: | High Beam |
| Homologations: | ECE R10 |
| Optical & Electric Features | |
| LED Type: | 36pcs LEDs |
| Emitting Color: | White |
| Color Temp: | 5000-6500K |
| Effective Lumen: | 13,777LM (pair) |
| Luminous Efficacy: | 57.40LM/W |
| Effective Power: | 120W |
| Current flow: | 10.0A@12V; |
| Illumination: | 1 Lux@930m (pair) |
| Electromagnetic Features | |
| EMC Grade: | ECE R10 |
| Operating Voltage: | 10V~30V |
| Connector (optional): | Open cable or DT |
| Mechanical Features | |

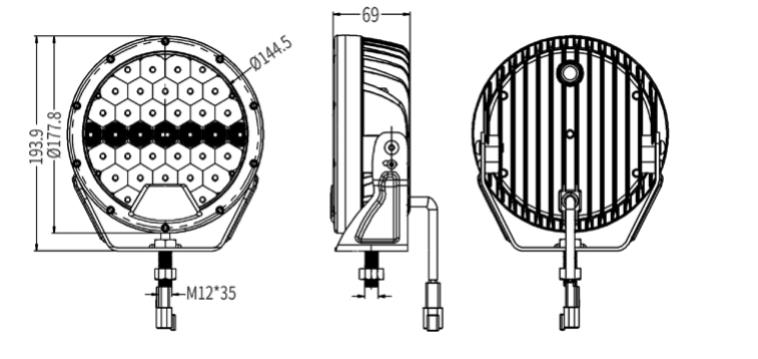

| Size: | 177.8x193.9x69mm |
| Housing Material: | Aluminum Alloy |
| Lens Material: | Anti-UV PC |
| Mount: | Bottom bracket |
| IP Rate: | IP67; IP6K9K |
| Work Temp: | -40~+50°C |
| Life Time: >30,000H | |
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 51pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 20,582LM (pair)
Learn More
Functions: High Beam,
Position
Homologation: ECE R112, R7, R10
LED Type: High Beam: 8 pcs 15W LEDs + 2 pcs 10W LEDs
Position: 32pcs 0.5W LEDs
Learn More
Model: E2139AS-1 (Gen. IV)
Functions, Homologation
Functions: High Beam, Position, Strobe
Homologation: ECE R149 ref20, R148, R65, R10
Learn More
