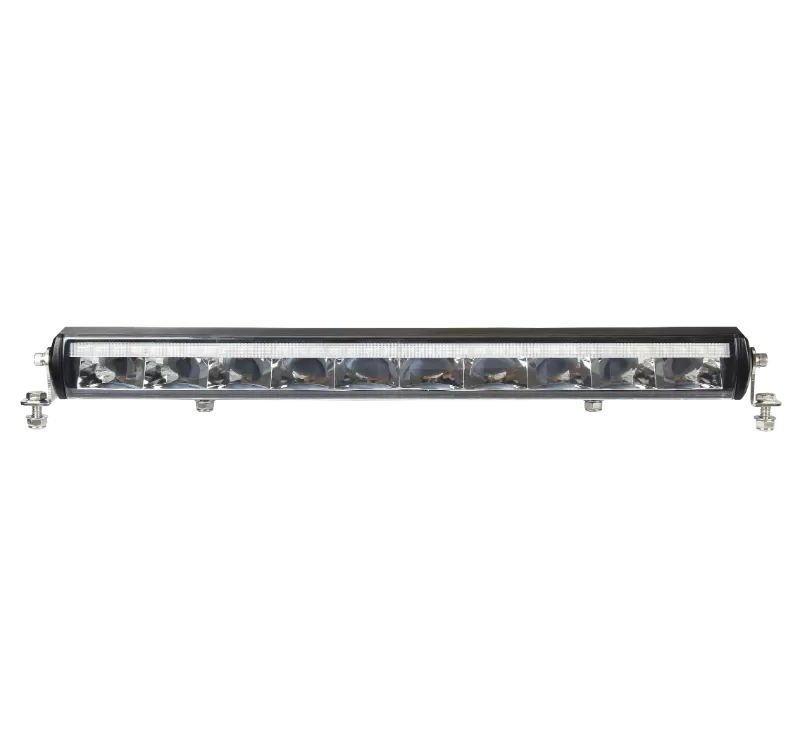

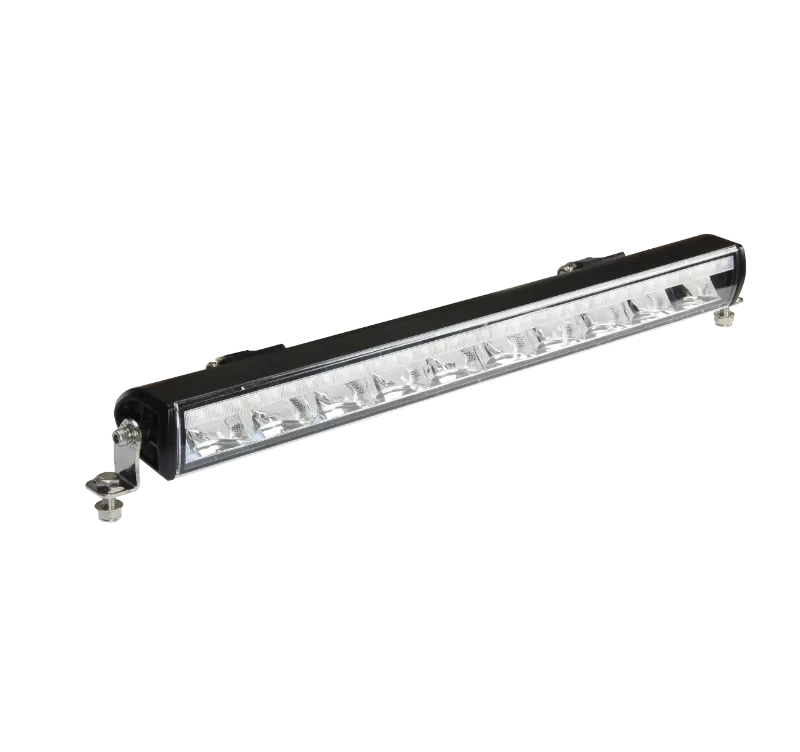

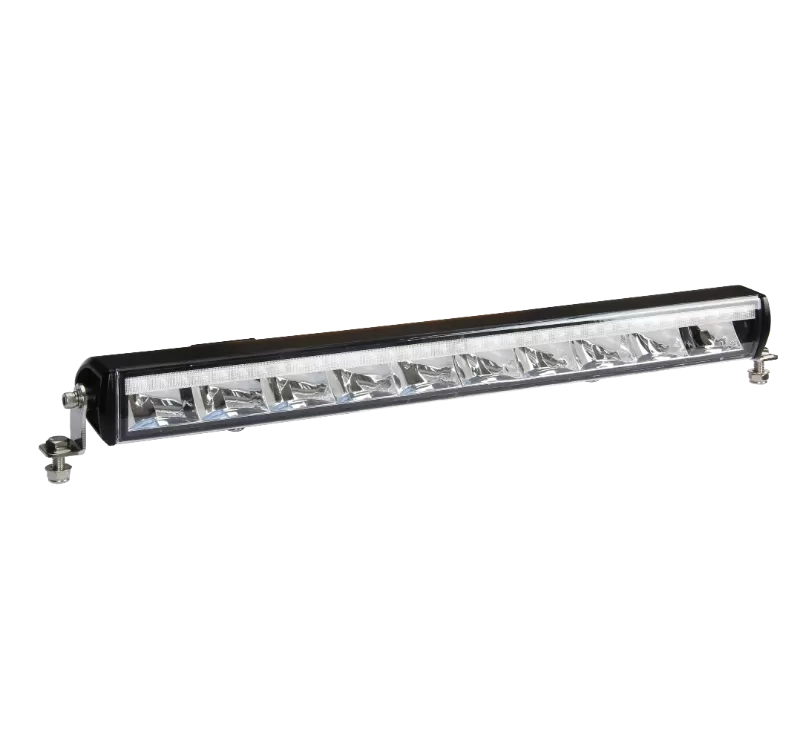

E8307-20” Aerodynamic Driving Light Bar – New design E8307-20” Aerodynamic Driving Light Bar – New design
Functions: High Beam,
Position Homologation: ECE R112, R7, R10
LED Type: High Beam: 8 pcs 15W LEDs + 2 pcs 10W LEDs
Position: 32pcs 0.5W LEDs
Functions: High Beam,
Position Homologation: ECE R112, R7, R10
LED Type: High Beam: 8 pcs 15W LEDs + 2 pcs 10W LEDs
Position: 32pcs 0.5W LEDs
| Model: E3307 | ||
| Functions, Homologation | Details | |
| Functions: | High Beam, Position | |
| Homologation: | ECE R112, R7, R10 | |
| Optical & Electric Features | ||
|---|---|---|
| LED Type: | High Beam: 8 pcs 15W LEDs + 2 pcs 10W LEDs Position: 32pcs 0.5W LEDs | |
| Emitting Color: | White | |
| Color Temp: | 5700K-6500K (White) | |
| Raw Lumen: | 11700LM | |
| Effective Lumen: | 4230LM | |
| Energy Consumption: | High Beam 58W; (White) | Position 1.5W |
| Current Draw @ 12V: | High Beam: 4.8A; | Position: 0.125A |
| Illumination: | High Beam: 1 lux @ 445m | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10V~30V | |
| Connector: | Cable | |
| Mechanical Features | ||

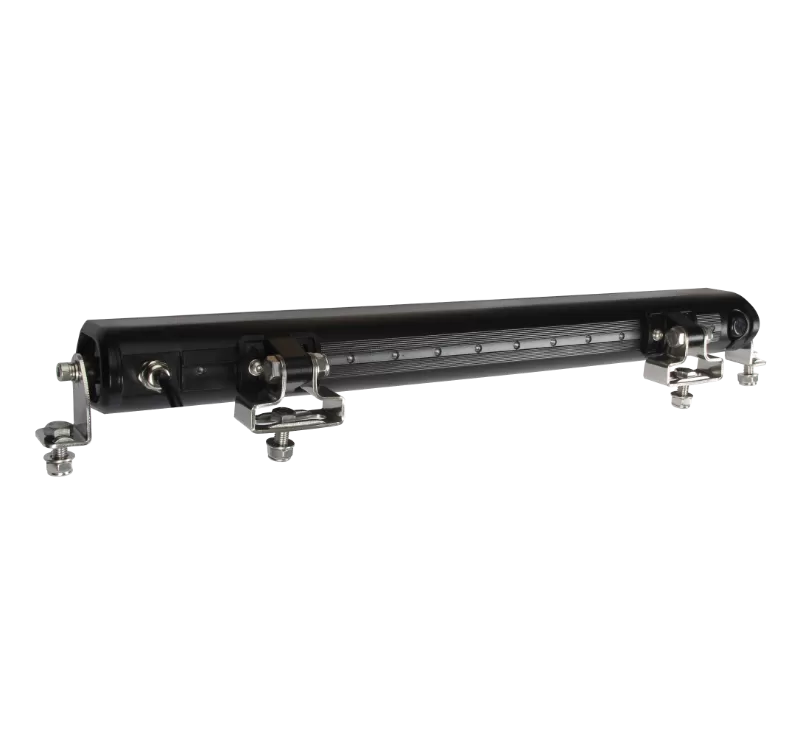

| Size: | 500X50.4X83.5mm (back bracket) | 514X50.9X77.6mm (side bracket) |
| Housing Material: | Aluminum | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Bracket: | Stainless Steel | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40~+50°C | |
| Life Time: >30,000h | ||
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 51pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 20,582LM (pair)
Learn More
Model: E2139AS-1 (Gen. IV)
Functions, Homologation
Functions: High Beam, Position, Strobe
Homologation: ECE R149 ref20, R148, R65, R10
Learn More
Functions, Homologation
Beam Pattern: High Beam
Homologations: ECE R10
LED Type: 36pcs LEDs
Emitting Color: White
Color Temp: 5000-6500K
Effective Lumen: 13,777LM (pair)
Learn More
