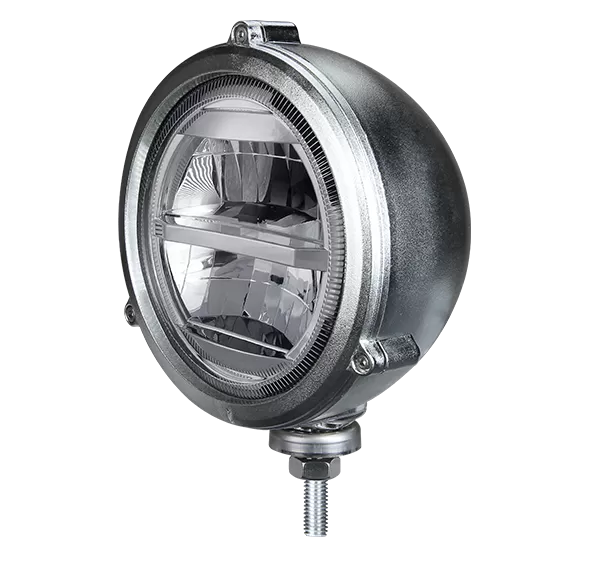

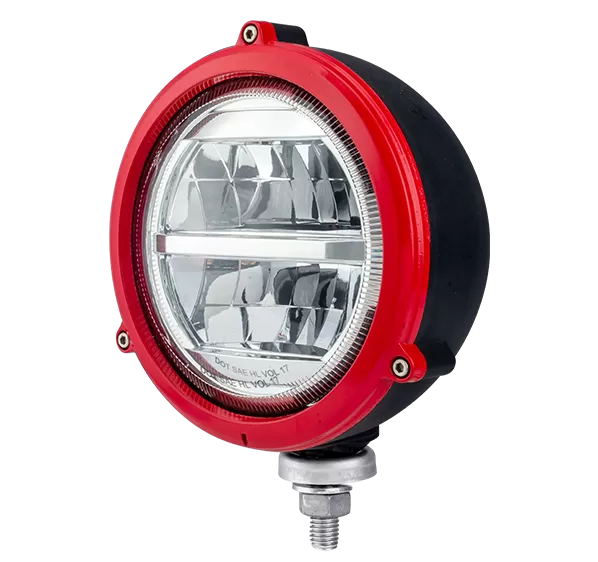

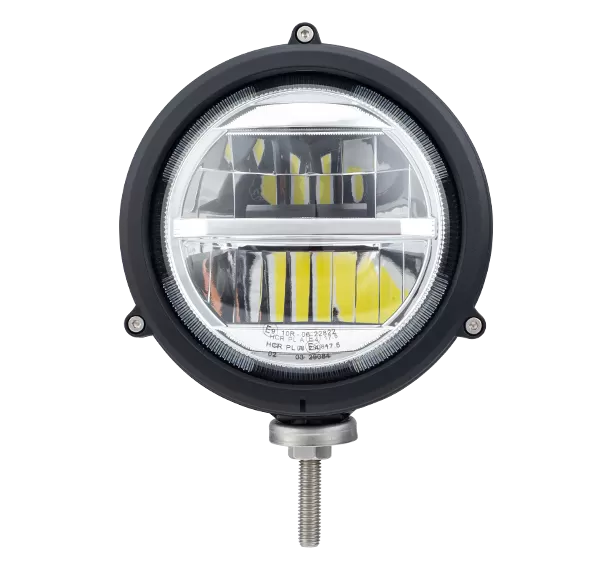

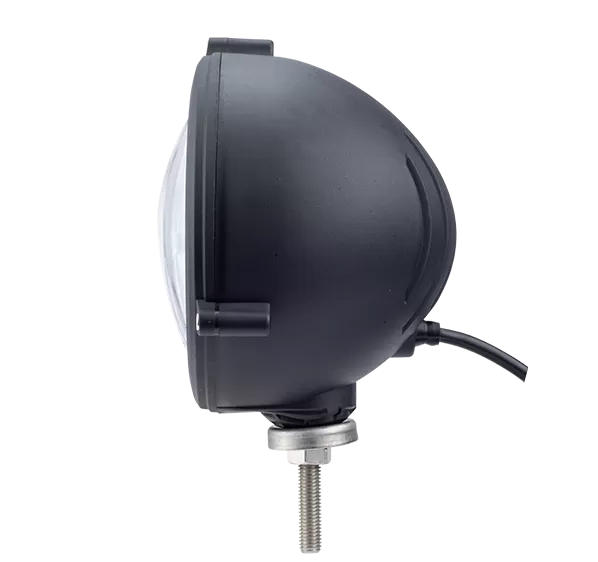

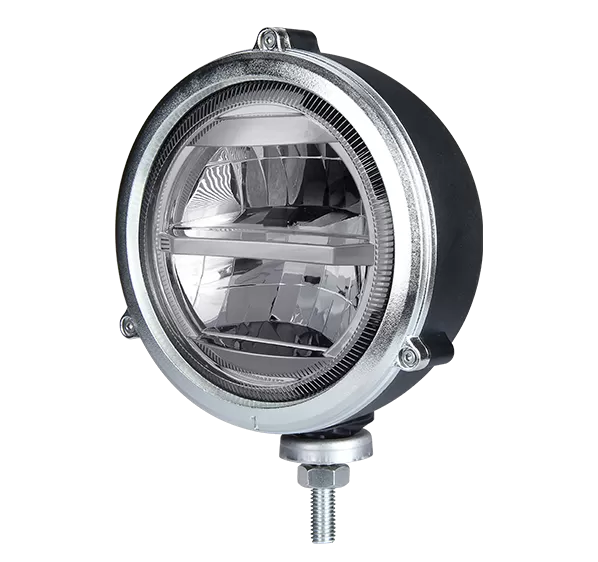

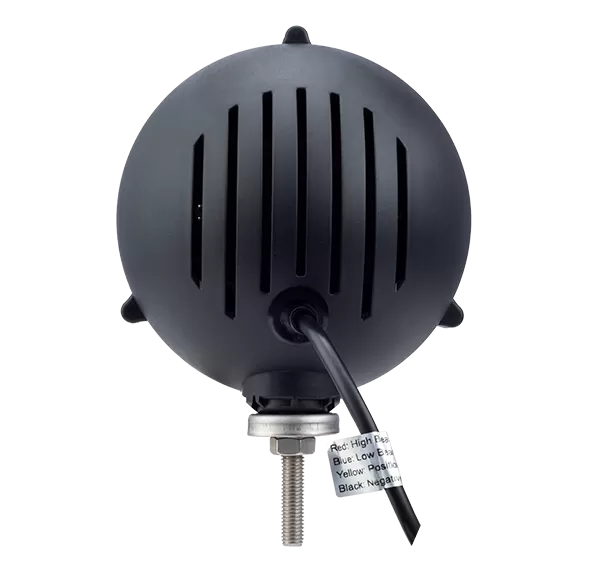

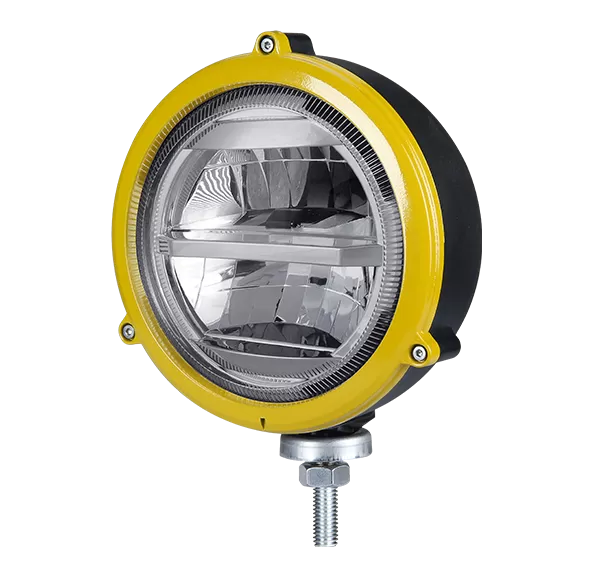

E1310 6” LED HEADLIGHT
1. OSRAM OEM vehicle LEDs
2. ECE R112 and DOT approved
3. Surface hardened lens
4. World class breather
5.EM mounting options
| Model: | E1310 | |
| Functions, Homologation | ||
| Functions: | Low Beam, High Beam, Parking | |
| Homologations: | ECE R112, R7, R10 SAE J1383 | |
| Optical & Electric Features | ||
| LED Type: | Low Beam:1pcs OSRAM LED High Beam:1pcs 15W 3chip LED +1pcs OSRAM LED Parking: 24pcs 0.5W LEDs | |
| Emitting Color: | White | |
| Color Temp: | White:5700K-6500k | |
| Energy Consumption: | Low beam：22 W High beam：23W Parking: 1.0W | |
| Current Draw@12V@24V | Low beam:1.83A @12V; 0.92A@24V High beam:1.92A @12V; 0.96A@24V Parking: 0.083A | |
| Illumination: | LUX @ m:Low beam：198m High beam：300m | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | H4 or open cable optional | |
| Mechanical Features | ||
| Size: | Approx.172X150 X126mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Bracket Material: | Stainless Steel | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
