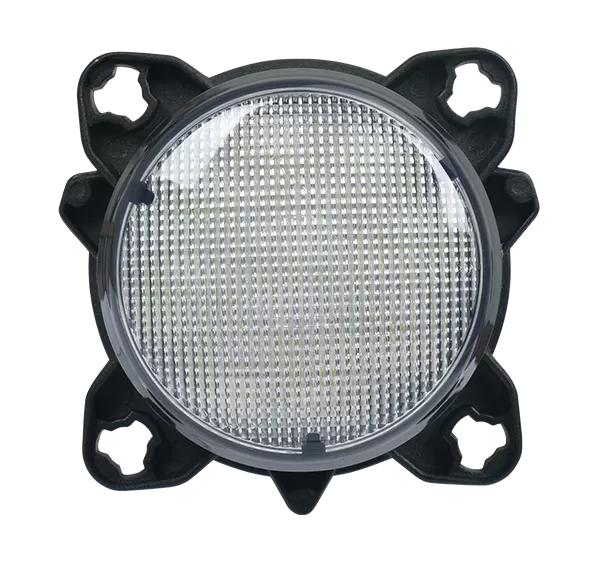

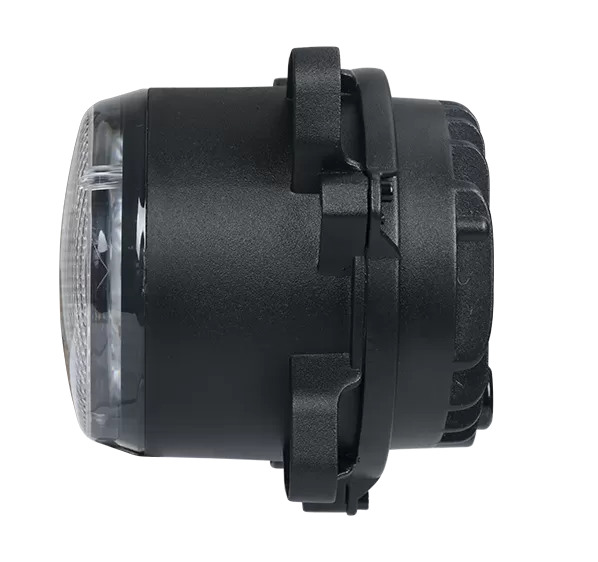

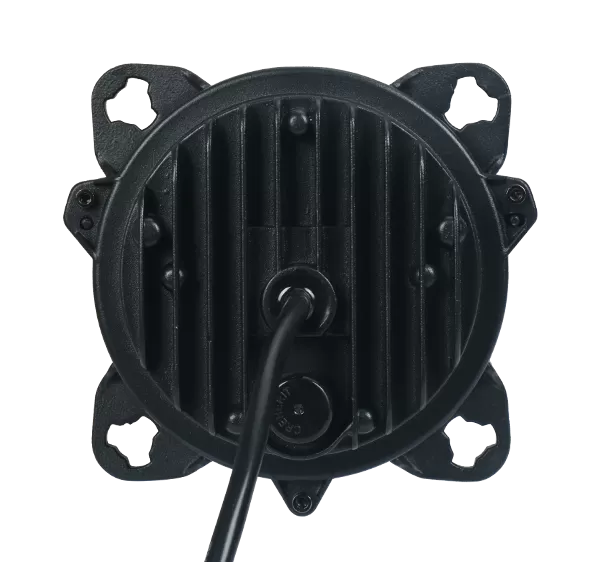

| Model: | E2219 | |
| Functions, Homologation | ||
| Functions | Flood Beam or Spot Beam | |
| Homologations | ECE R10 | |
| Optical & Electric Features | ||
| LED Type: | OE Vehicle Level LEDs | |
| Color Temp: | 5700K | |
| Raw Lumen: | 4000LM | |
| Effective Lumen: | 2879.5LM | |
| Luminous Efficacy: | 92.8LM/W | |
| Effective Power: | 31W | |
| Current Draw: | 2.58A@12V; 1.29A@24V | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10V~30V | |
| Connector: | Cable | |
| Mechanical Features | ||
| Size: | 117.9 X 109X 114.5mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC + Hardening Process | |
| PC Brand | COVESTRO 2407 | |
| Bracket: | Flushbonading (4 tabs) | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
