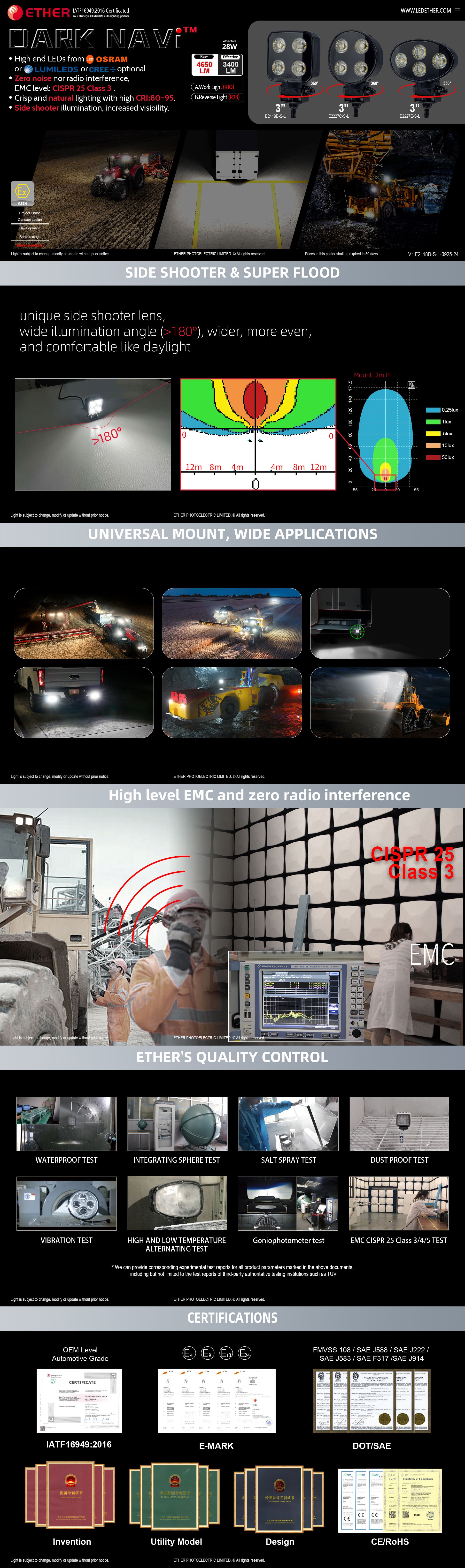

Dark NaviTM series
- Premium work lights with design of next level.
- Stylish dark appearance and side shooter optic output.
- High end LEDS from automotive grade LEDs manufacturers.
- Zero noise, nor radio interference,
- EMC level up to CISPR 25 Class 3.
- Increased visibility and comfortable lighting.

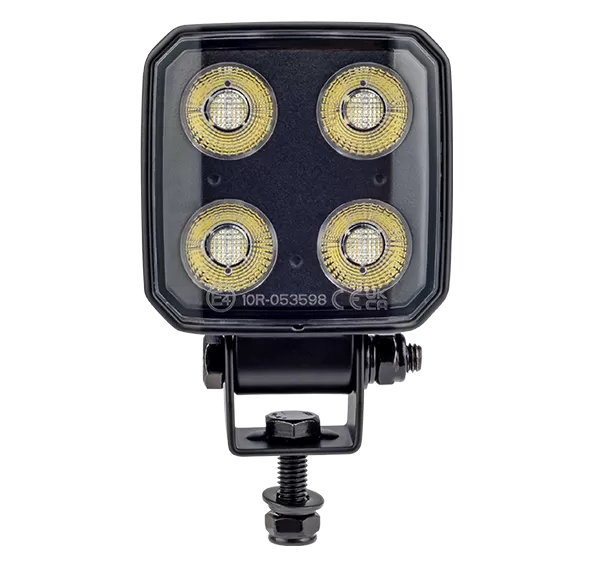

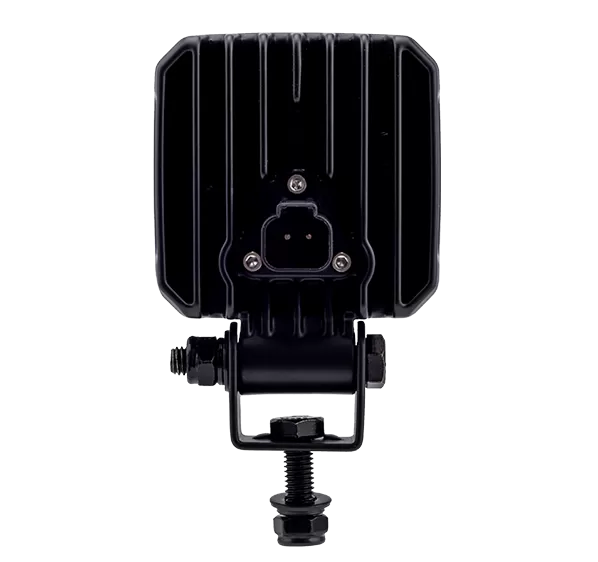

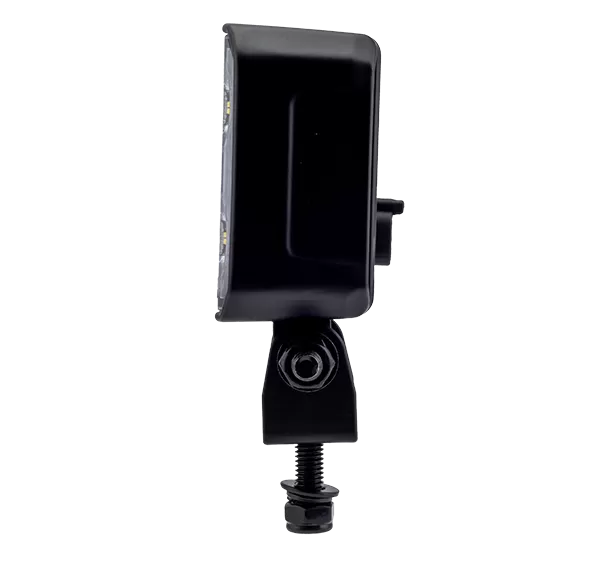

| Model: | E2118D-S | |
| Functions, Homologation | ||
| Functions: | Flood Beam (>180°) | |
| Homologations | ECE R10, R23 | |
| Optical & Electric Features | ||
| LED Type: | 4pcs 10W LEDs | |
| Color Temp: | 5700~6500K | |
| Raw Lumen: | 4560LM | |
| Effective Lumen: | 3400LM | |
| Luminous Efficacy: | 87LM/W | |
| Raw Power: | 40W | |
| Effective Power: | 39W(ATM) | |
| Current Draw: | 2.5A@12V; 1.25A@24V | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10V~30V | |
| Connector: | DT / AMP/ Cable (Optional) | |
| ATM: | Active thermal management | |
| Mechanical Features | ||
| Size: | 75.54X 112.25X 47.23mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Warranty | 3~5 Years | |
| Bracket: | Bottom bracket | |
| IP Rate: | IP67, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
